Home / Application & Solution / Mobile Solar Surveillance Trailer | Off-Grid Power Solution for Mobile CCTV

Reliable 24/7 Green Power Supply: Smart Mobile Solar Generators Engineered for Remote, Temporary Security & Emergency Surveillance Systems.

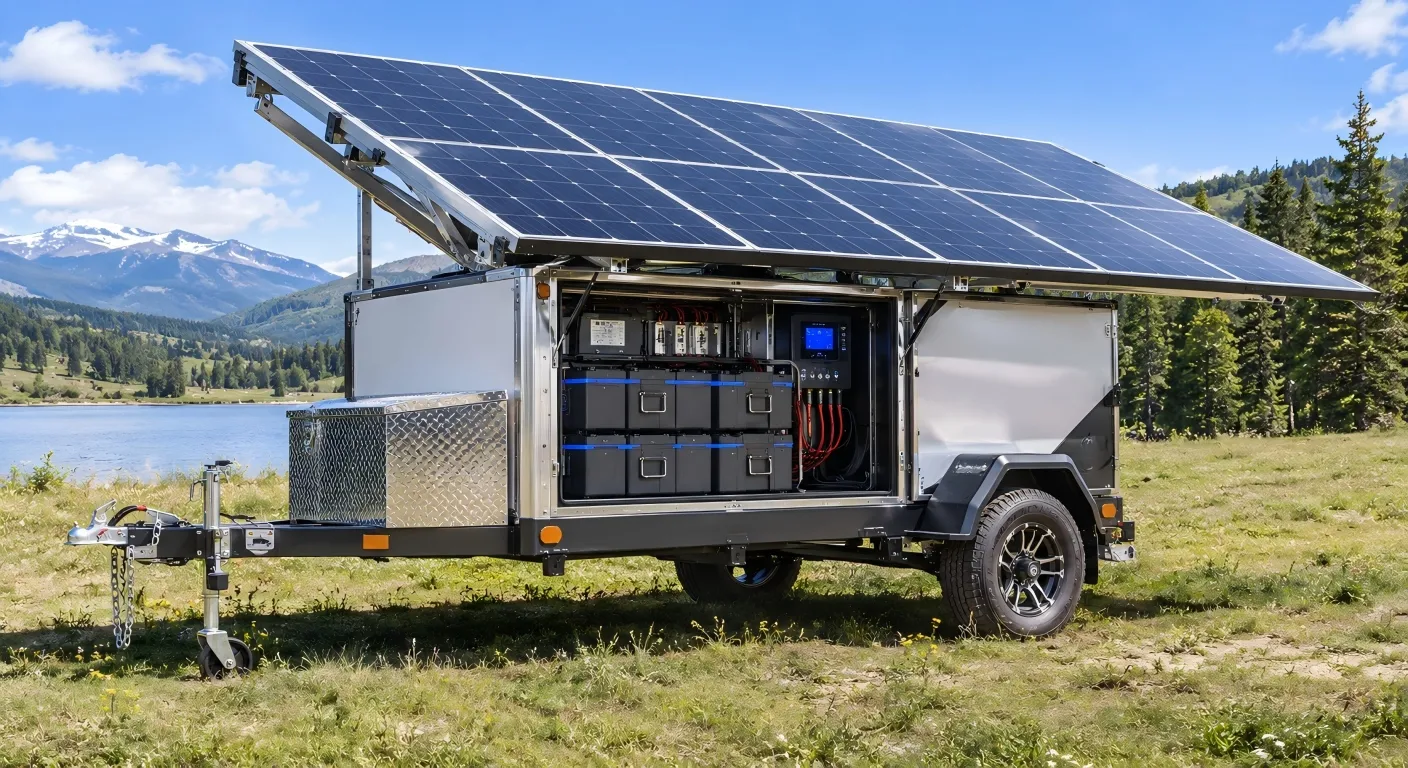

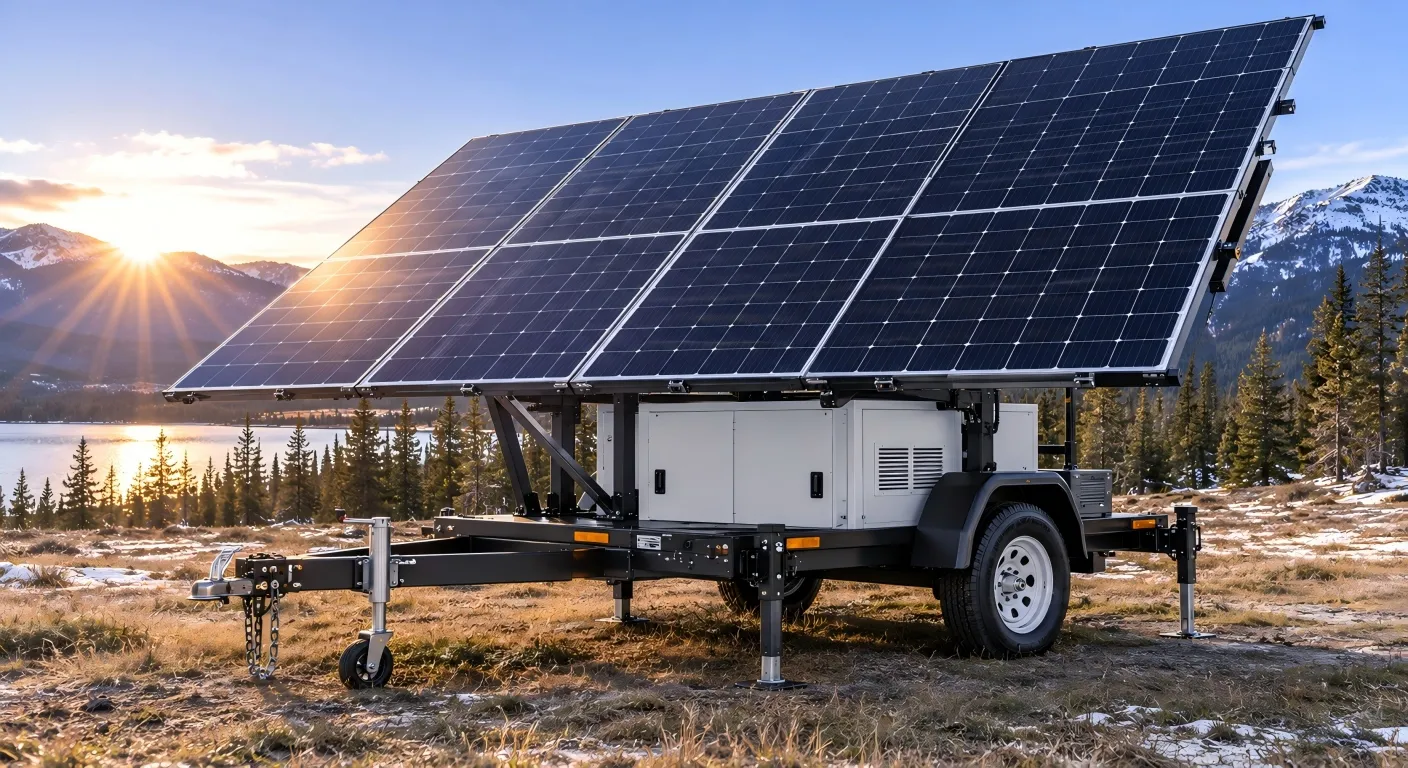

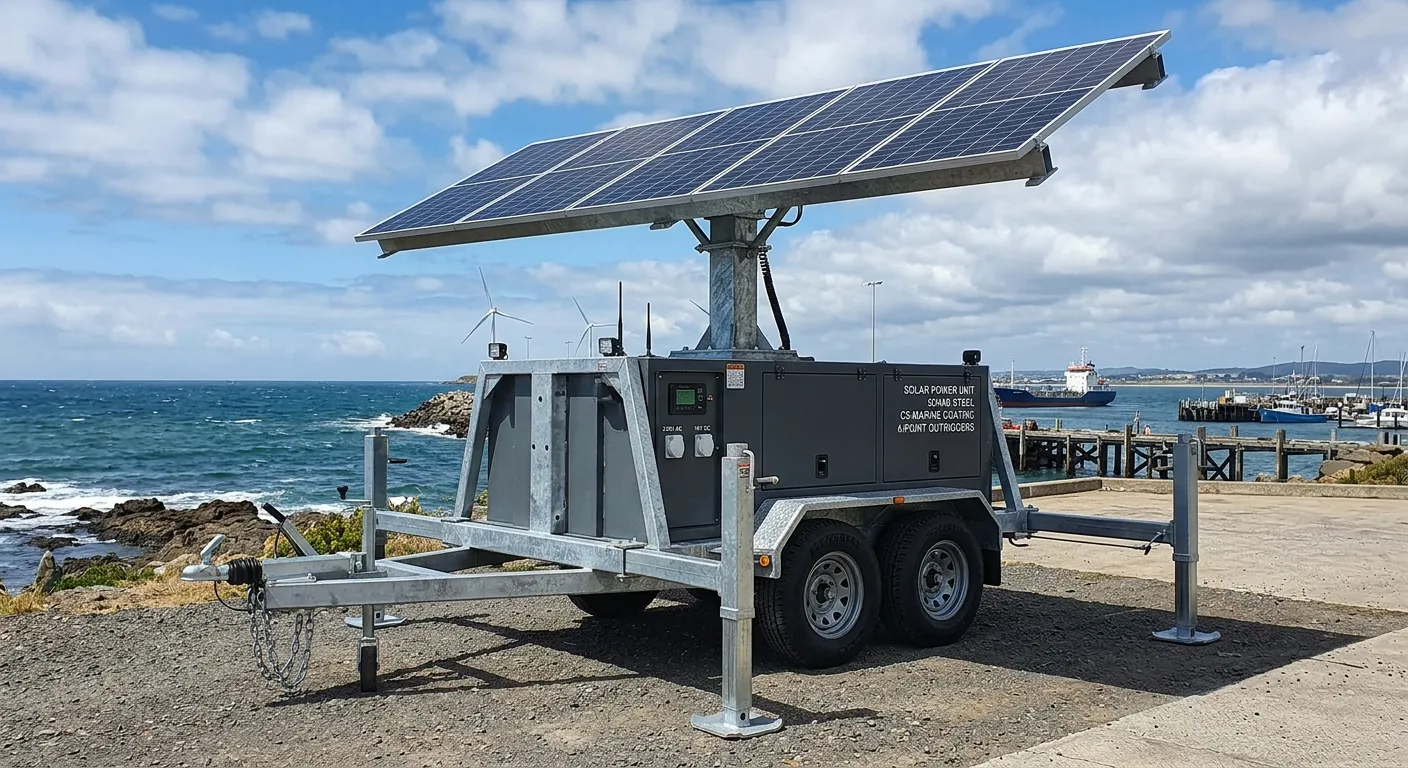

Mobile Solar Surveillance Trailer | Off-Grid Power Solution for Mobile CCTV

In construction sites, remote mountainous regions, highway checkpoints, large outdoor events, and emergency rescue operations, mobile surveillance systems (CCTV, PTZ cameras, radars, license plate recognition systems) are vital for safety and asset protection. However, these off-grid locations often suffer from inaccessible grid power, exorbitant cable-trenching costs, and unreliable fuel generators that require constant refueling and maintenance.

Product Advantages:

🔋 Uninterrupted 24/7 Power Supply

🚚 Rapid Deployment & High Mobility

💰 Zero Fuel Costs & Minimal Maintenance

🛡️ All-Weather Durability & Rugged Build

⚙️ IoT Remote Monitoring & Smart Management

Seek Quotation

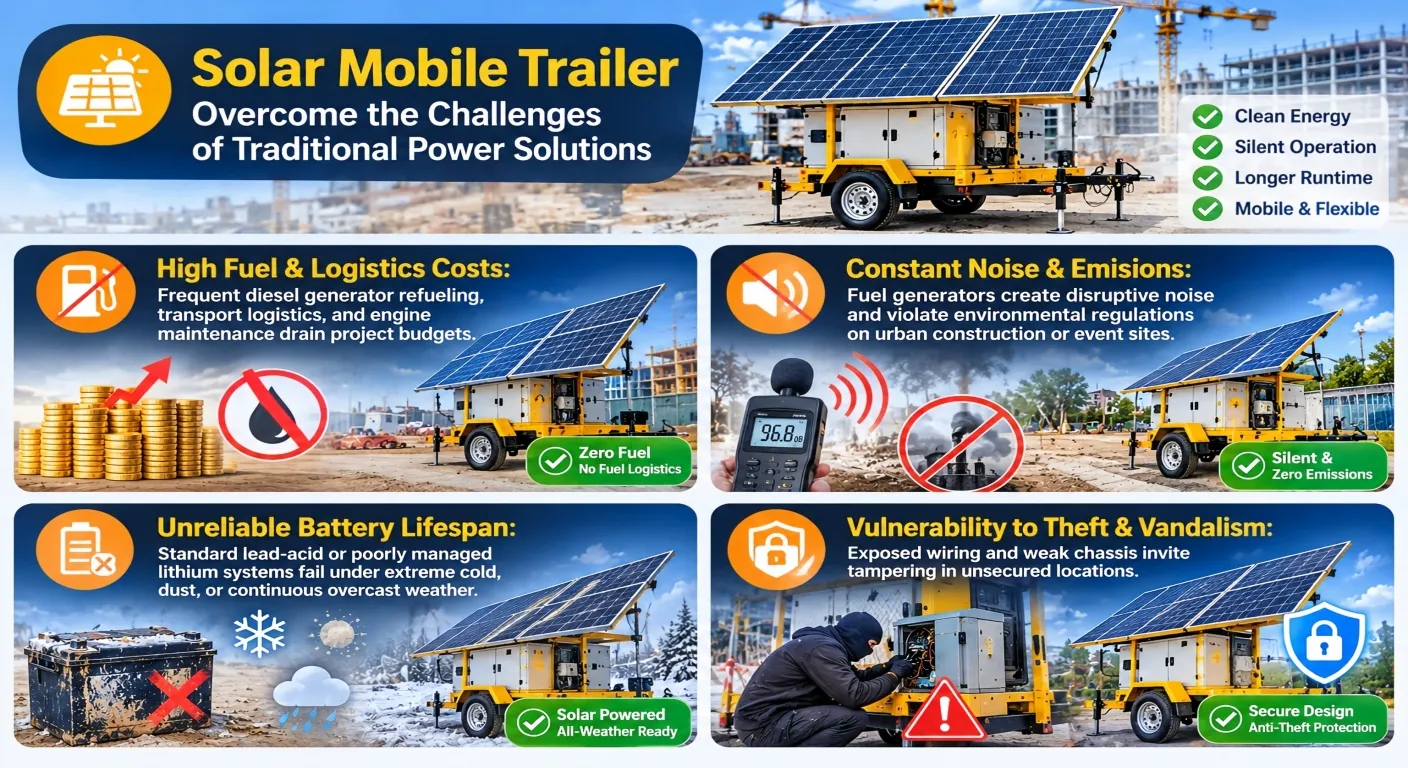

Why Traditional Security Trailer Power Fails in Remote & Harsh Environments

⛽ High Fuel & Logistics Costs: Frequent diesel generator refueling, transport logistics, and engine maintenance drain project budgets.
🔊 Constant Noise & Emissions: Fuel generators create disruptive noise and violate environmental regulations on urban construction or event sites.
🔋 Unreliable Battery Lifespan: Standard lead-acid or poorly managed lithium systems fail under extreme cold, dust, or continuous overcast weather.
🛠️ Vulnerability to Theft & Vandalism: Exposed wiring and weak chassis invite tampering in unsecured locations.
ENGINEERED FOR UNINTERRUPTED 24/7 SECURITY OPERATIONS
☀️ High-Efficiency Tier-1 PV Modules
Equipped with 400W–1200W+ monocrystalline / bifacial solar panels featuring high low-light performance to maximize energy harvest year-round.

⚡ Smart LiFePO4 Battery Bank & MPPT
2.4kWh to 30kWh+ high-capacity lithium iron phosphate batteries paired with advanced MPPT charge controllers for up to 99% tracking efficiency and ultra-long cycle life.

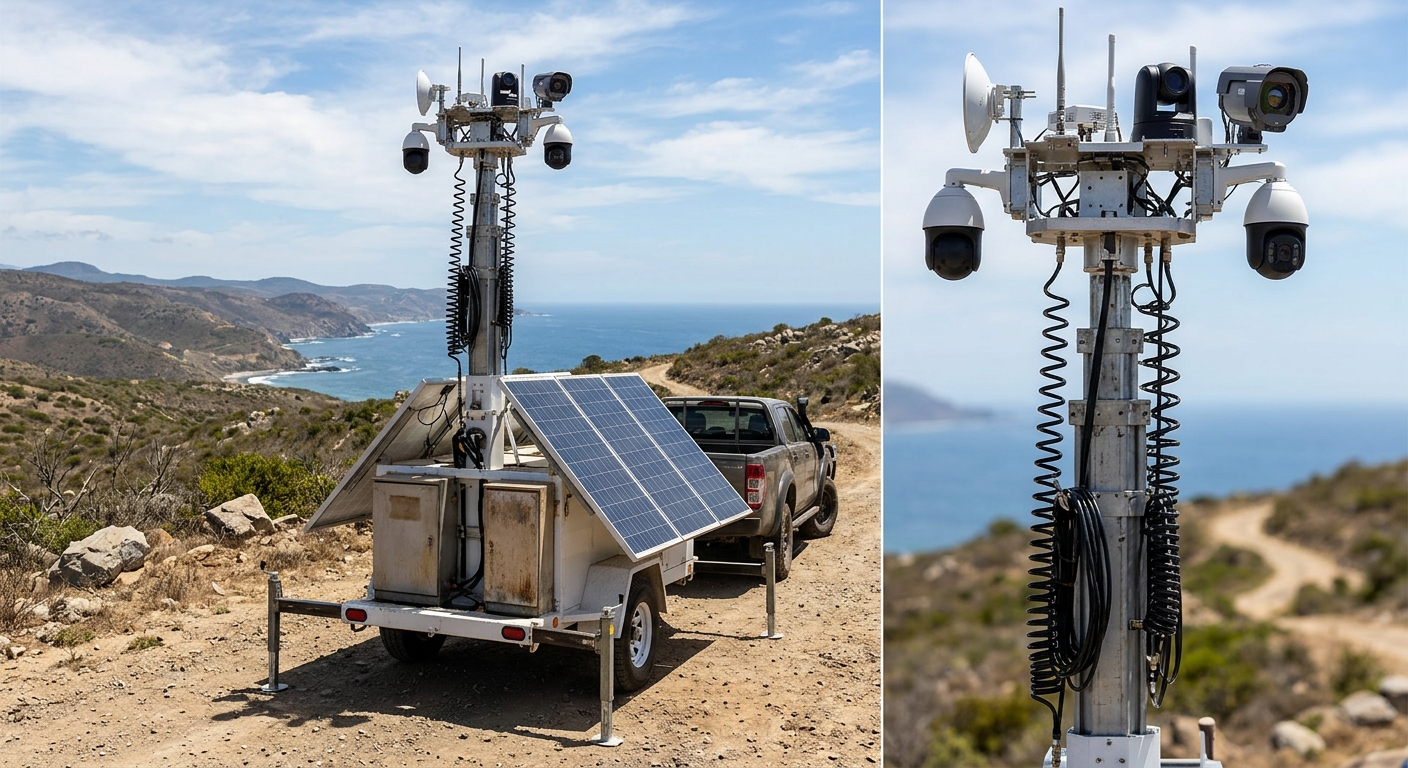

🔭 Heavy-Duty Telescopic Masts
4m to 12m pneumatic/manual telescoping masts designed to support multiple PTZ cameras, thermal imagers, and wireless transmitters securely.

🏗️ Rugged Road-Ready Chassis
Hot-dip galvanized Q345B steel frame with C5/marine-grade anti-corrosion coating, 4-point outriggers, and wind-load rated up to 120 km/h.

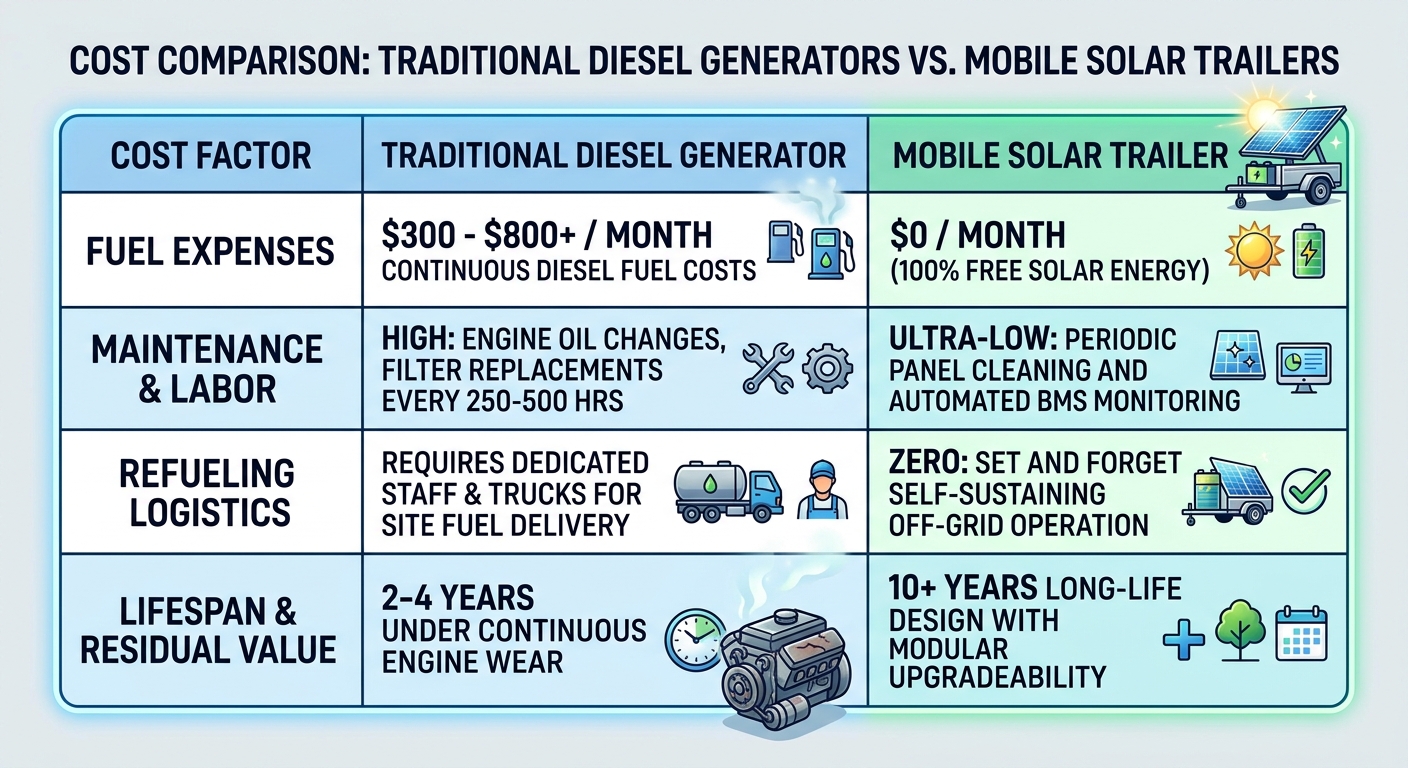

LOWER TOTAL COST OF OWNERSHIP (TCO) & FAST ROI
Switch from diesel power to solar to eliminate ongoing fuel overhead, cut maintenance site visits, and reach full ROI in under 12 months.

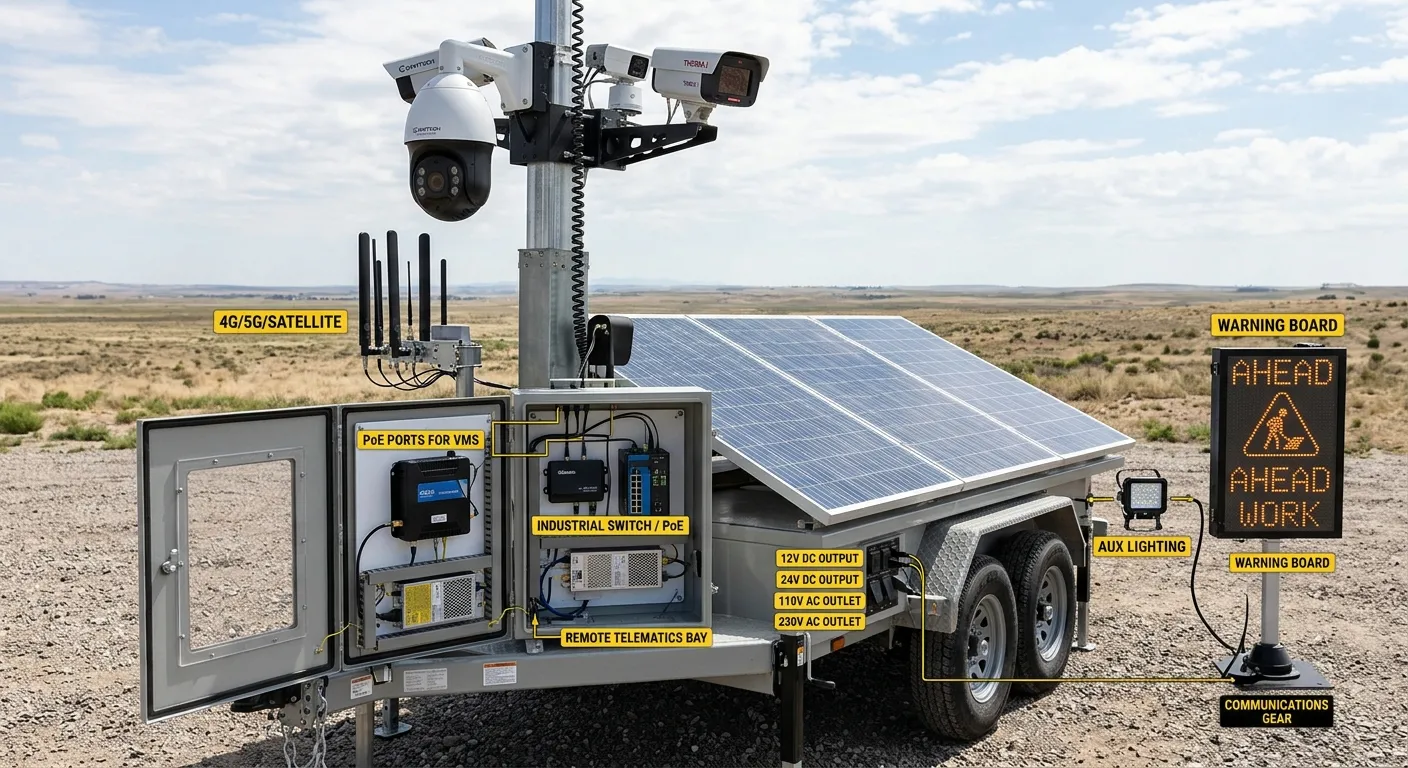

Seamless Integration for All Major Security & VMS Hardware

Our pre-wired enclosures and multi-voltage outputs eliminate custom fabrication delays.
📷 Camera & VMS Compatibility: Universal mounting brackets and PoE switches ready for Milestone, Genetec, Axis, Hikvision, and Dahua PTZ/thermal cameras.
🌐 Remote Telematics & 4G/5G/Satellite: Dedicated space and power feeds for cellular routers, industrial switches, and remote asset tracking.
⚡ Flexible Power Outputs: Multi-voltage support (12V/24V DC and 110V/230V AC) to power auxiliary lighting, LED warning boards, or communications gear.

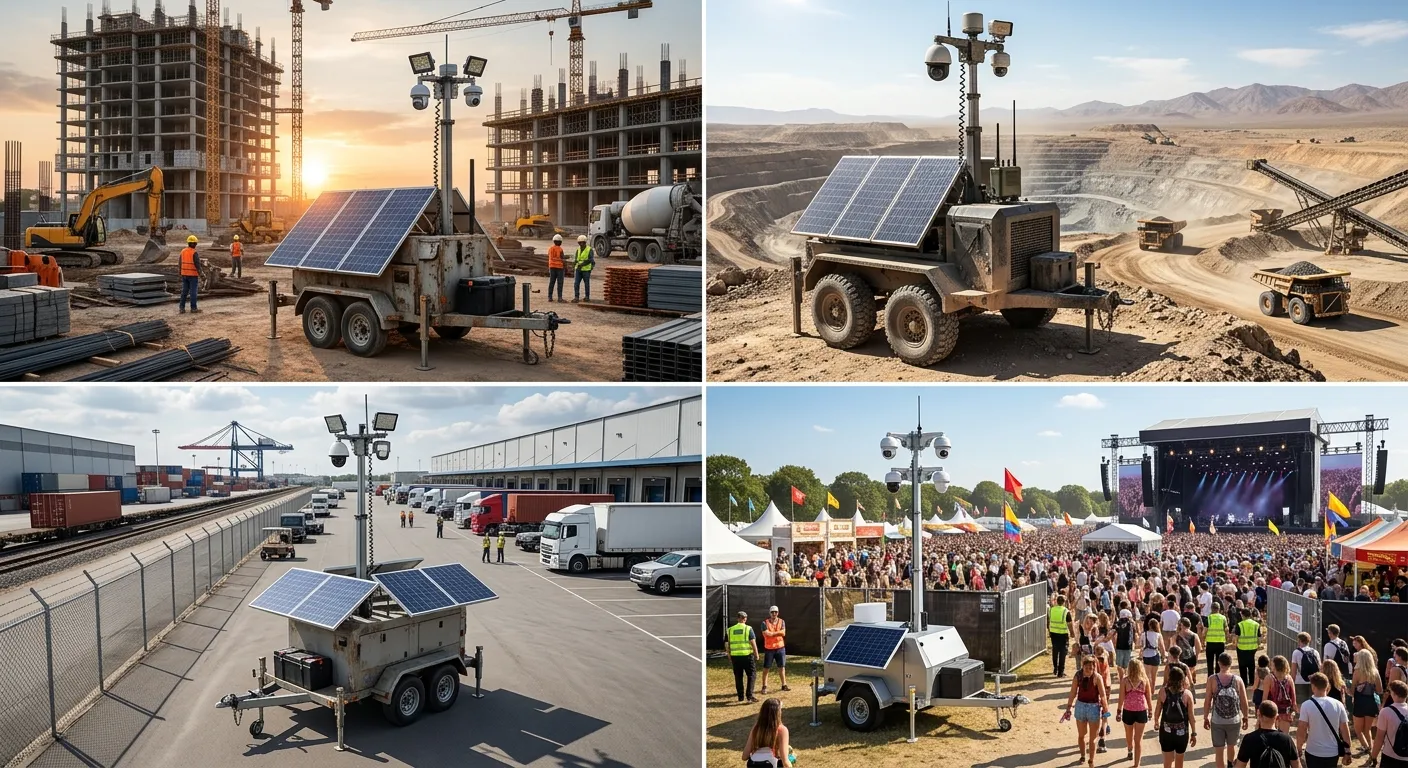

Built for Demanding Applications Across Industries

🏗️ Construction & Infrastructure: Monitor job sites, prevent material theft, and oversee project progress remotely without grid power.
⛏️ Mining & Oilfields: Deliver reliable perimeter security and remote asset monitoring in harsh desert or arctic environments.
🅿️ Parking Lots & Logistics Parks: Secure large outdoor storage yards, shipping ports, and commercial parking areas cost-effectively.
🎟️ Events & Public Safety: Provide temporary, rapid-deployment surveillance for festivals, sports events, and municipal traffic control.

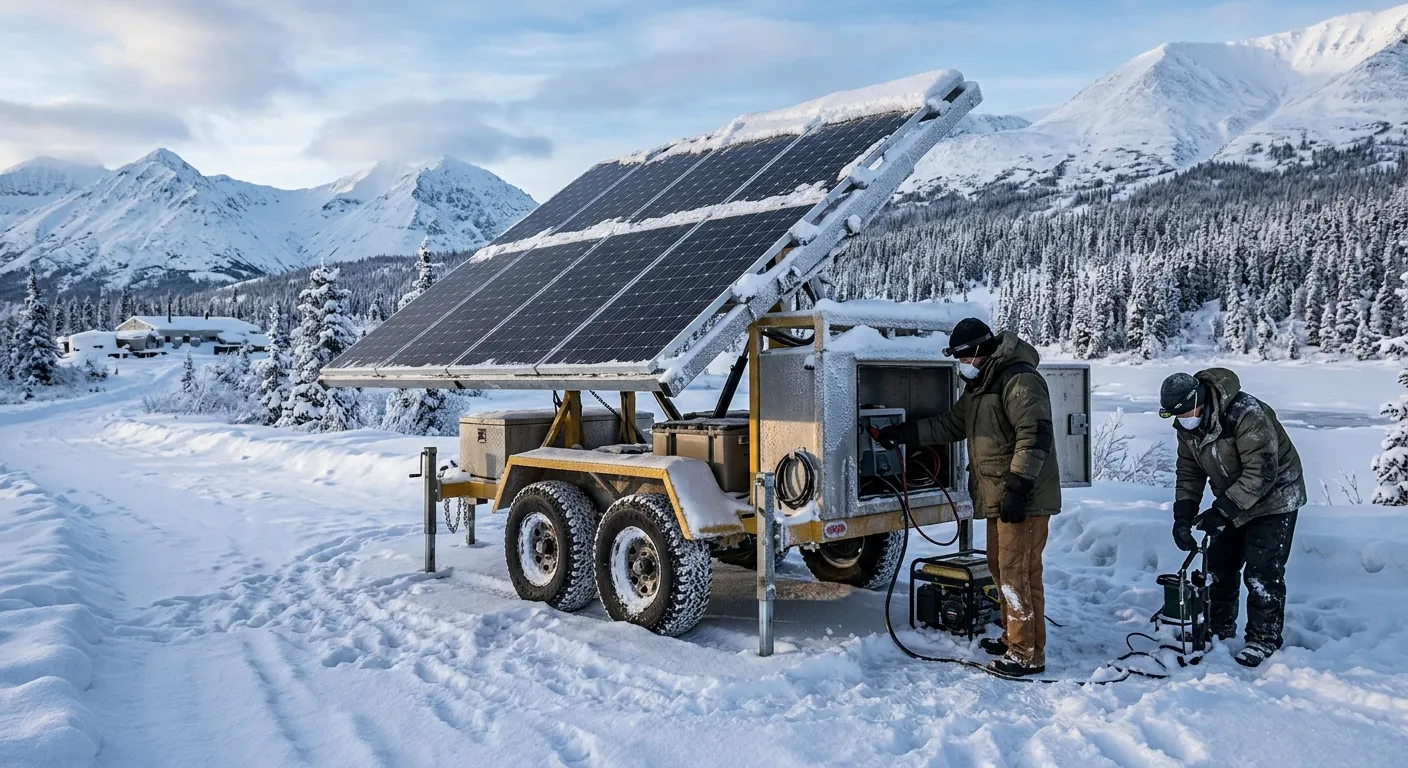

Engineered for Severe Environments: From Desert Heat to Arctic Cold

❄️ Extreme Temperature Adaptability: Operates smoothly between -30°C to +60°C. Optional internal battery heating/cooling modules prevent thermal throttling in extreme climates.
🌊 C5 & Marine-Grade Anti-Corrosion: Frame built with hot-dip galvanized steel, treated with C5-standard heavy powder coating and 316 stainless steel fasteners for coastal salt-spray protection.
💨 High Wind Load Rating: 4-point heavy-duty extendable outriggers provide physical stability against winds up to 100 – 120 km/h (Category 11-12 typhoons/hurricanes).
🛡️ IP65/IP66 Waterproof Enclosure: Fully sealed, lockable control cabinets protect precision MPPT controllers, inverters, and lithium batteries from dust, sandstorm, and torrential rain.

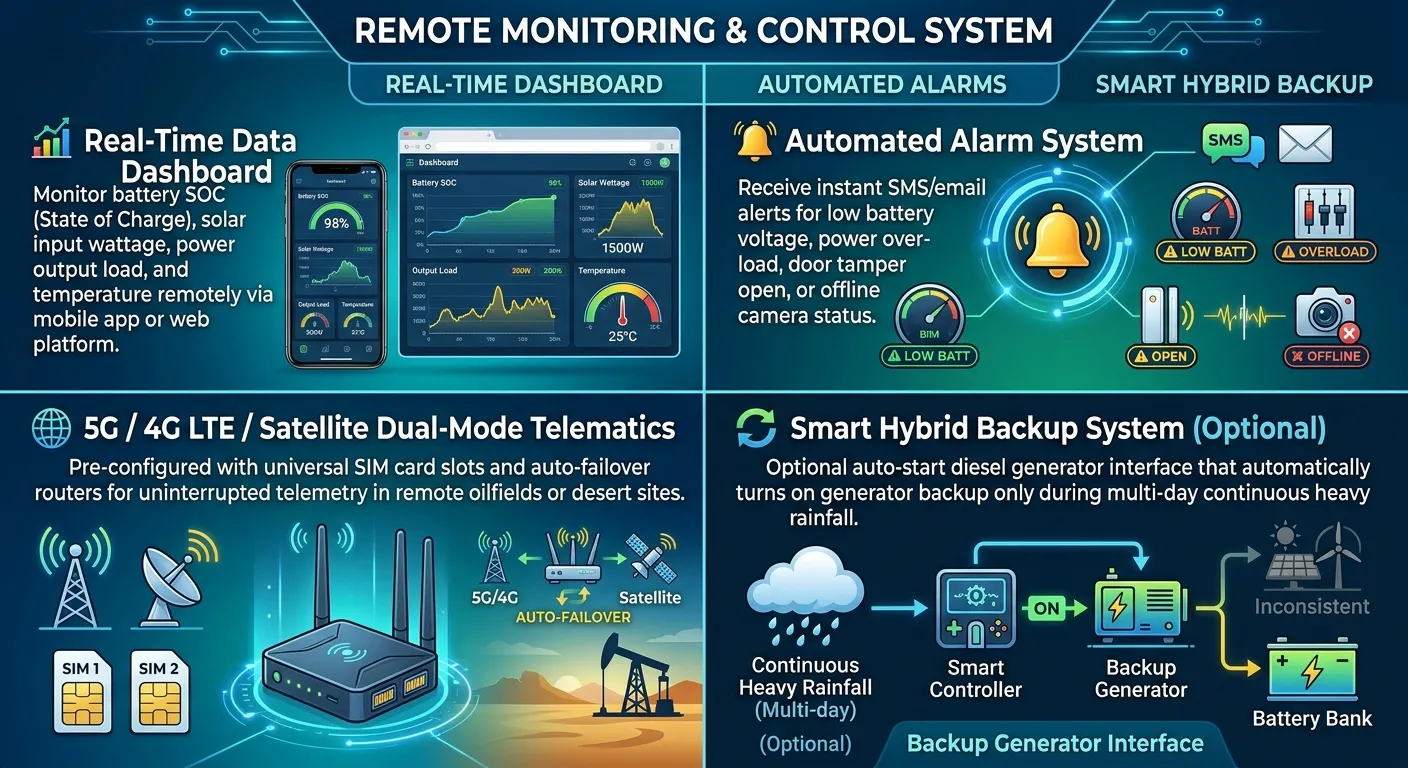

Cloud-Based Remote Telematics & Automated Monitoring

📊 Real-Time Data Dashboard: Monitor battery SOC (State of Charge), solar input wattage, power output load, and temperature remotely via mobile app or web platform.
🔔 Automated Alarm System: Receive instant SMS/email alerts for low battery voltage, power overload, door tamper open, or offline camera status.
🌐 5G / 4G LTE / Satellite Dual-Mode Telematics: Pre-configured with universal SIM card slots and auto-failover routers for uninterrupted telemetry in remote oilfields or desert sites.
🔄 Smart Hybrid Backup System (Optional): Optional auto-start diesel generator interface that automatically turns on generator backup only during multi-day continuous heavy rainfall.

TECHNICAL SPECIFICATIONS & MODEL COMPARISON

Select standard configurations or request custom specs tailored to your deployment payload.

Specification	Enterprise Model (Pro)	Heavy-Duty Hybrid Model (Max)	Custom OEM / ODM
Solar Array Capacity	3 x 430W Monocrystalline (1290W)	4 x 460W TOPCon Bifacial (1840W)	Tailored (400W – 2400W+)
Battery Bank Type	Deep-Cycle LiFePO4 (24V/48V)	Industrial Smart LiFePO4 with BMS	LiFePO4 / Gel Options
Storage Capacity	5.12 kWh	10.24 kWh – 20.48 kWh	2.4 kWh – 30 kWh+
Telescopic Mast	6m / 20ft Manual Winch Mast	9m / 30ft Pneumatic / Electric Mast	4m – 12m Heavy Duty
Wind Resistance	100 km/h	120 km/h	Certified Wind-Rated
Towing Standard	DOT / CE / ADR Compliant	DOT / CE / ADR Compliant	Region-Specific Towing

Simple 4-Step OEM/ODM Manufacturing Process

📋 Step 1: Requirement & Payload Sizing: Send us your equipment power draw (total Watts of cameras, NVRs, lights) and target deployment region for backup autonomy calculations.
📐 Step 2: 3D CAD & System Design: Our engineering team generates 3D CAD trailer drawings, wiring diagrams, and load analysis reports for your sign-off within 48 hours.
🏭 Step 3: Precision Manufacturing & Testing: Factory production featuring laser cutting, robotic welding, salt-spray anti-corrosion testing, and 72-hour aging burn-in tests.
🚢 Step 4: Global Logistics & Sea Freight Support: Secure container loading, SKD/CKD shipping options, and complete compliance documentation (CE, UN38.3, MSDS) for customs clearance.

📈 Ready to Upgrade Your Mobile Surveillance Fleet?
Subheadline: Contact our solar engineering team today for factory-direct wholesale pricing, custom CAD drawings, and fast lead times.

FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: How many days can the trailer power cameras without sunlight?

A: Standard configurations provide 3 to 5 days of continuous 24/7 power backup based purely on the battery bank. We can expand battery capacity to support up to 7+ days of autonomy for high-latitude rainy regions.

Q2: Can we mount our own third-party cameras and VMS software on your mast?

A: Yes! Our trailers feature pre-wired internal Cat6 Ethernet cabling, PoE switches, universal mounting plates, and 12V/24V DC / 110V-240V AC junction boxes. They are 100% plug-and-play for Hikvision, Axis, Dahua, Milestone, and Genetec platforms.

Q3: What towing standards do your trailer hitches and axles meet?

A: We manufacture chassis and axle systems strictly adhering to US DOT/SAE, European CE/WVTA, and Australian ADR towing standards, including electric/surge braking options and standard towball/pintle hitches.

Q4: What is the typical lead time for bulk B2B orders?

A: Standard trailer models take 15–20 days for manufacturing. Customized OEM orders typically take 25–30 days depending on component specifications.
