Home / Application & Solution / How to Choose Solar Trailer Battery Capacity & Backup Time | YGNE Solar

Accurately calculate load demand, balance battery capacity with days of autonomy, and build a cost-effective mobile solar power system.

How to Choose Solar Trailer Battery Capacity & Backup Time | YGNE Solar

When investing in mobile solar trailers—whether for construction security, highway lighting, or remote power generation—the battery bank is the heart of the system. An undersized battery leads to frequent power outages and generator run-time fatigue, while an oversized system drives up unnecessary capital expenditure (CAPEX).

Product Advantages:

📋Powered by high-grade automotive LiFePO4 batteries, this system provides 4,000+ deep-cycle lives and a 10+ year operational lifespan, fully protected by an intelligent BMS. Its modular design allows customized autonomous backup ranging from 1 to 5+ days based on local solar profiles and power demands. Featuring seamless generator/grid hybrid integration and IP67-rated all-weather protection with optional thermal heating, it guarantees reliable, uninterrupted power even in extreme climates and remote, unattended applications.

Seek Quotation

❓Why Battery Capacity & Backup Time Matter

In off-grid locations, reliable power is the backbone of your project. We offer diverse battery configurations—from reliable lead-acid to high-density LiFePO4—delivering everything from a few hours of emergency backup to 24/7 continuous operation.
1. 🛡️ Guarantees 24/7 Power
Keeps security cameras, routers, and site lights online overnight and through extended rainy weather without dropping offline.
2. 💰 Prevents Costly Downtime
Avoids power failures that cause equipment theft, vandalism, and project delays costing tens of thousands of dollars.
3. ⛽ Eliminates Fuel & Generator Costs
Replaces noisy, high-maintenance diesel generators with 100% clean, silent, and maintenance-free solar energy storage.
4. 🌡️ Extends Battery Lifespan
Prevents deep discharge damage, maintaining a safe Depth of Discharge (DOD) to extend lifespan up to 8–10 years.

CORE ADVANTAGES TABLE

Battery Type	Recommended Depth of Discharge (DOD)	Cycle Life	Key Highlights
LiFePO4 (Lithium Iron Phosphate)	80% - 90%	4000+ cycles	⚡ Ultra-long lifespan, lightweight, high efficiency; ideal for harsh environments.
GEL Battery	50% - 60%	1000 - 1500 cycles	💰 Cost-effective initial investment, low maintenance, a classic choice.

SOLAR TRAILER BATTERY CAPACITY VS. AUTONOMY TIME MATRIX

Below is a standard reference matrix comparing battery capacity, chemical types, load power, and estimated backup running time (autonomy) without continuous solar input.

Battery Type	System Voltage	Nominal Capacity (Ah / kWh)	Usable Energy (Wh)	Standard Load Power (W)	Typical Application / Load	Estimated Autonomy Time (Hours)*
GEL / AGM (Lead-Acid)	24V	400 Ah / 9.6 kWh	4,800 Wh (50% DoD)	100 W	2× LED Floodlights / Standard CCTV	48 hrs (~2 Days)
	24V	600 Ah / 14.4 kWh	7,200 Wh (50% DoD)	150 W	4× LED Lights + PTZ Camera + 4G Router	48 hrs (~2 Days)
	48V	400 Ah / 19.2 kWh	9,600 Wh (50% DoD)	200 W	Multi-Camera AI Tower + Audio Speaker	48 hrs (~2 Days)
LiFePO4 (Lithium)	24V	200 Ah / 5.12 kWh	4,096 Wh (80% DoD)	80 W	Low-Power Surveillance Station	51 hrs (~2.1 Days)
	24V	400 Ah / 10.24 kWh	8,192 Wh (80% DoD)	120 W	4× 30W LED Lights + NVR Recorder	68 hrs (~2.8 Days)
	48V	200 Ah / 10.24 kWh	8,192 Wh (80% DoD)	150 W	High-Definition PTZ + Radar + 4G/5G Router	54 hrs (~2.25 Days)
	48V	300 Ah / 15.36 kWh	12,288 Wh (80% DoD)	200 W	Heavy-Duty Light Tower (4× 50W LEDs)	61 hrs (~2.5 Days)
	48V	400 Ah / 20.48 kWh	16,384 Wh (80% DoD)	300 W	Heavy-Duty Mobile Monitoring & Lighting	54 hrs (~2.25 Days)

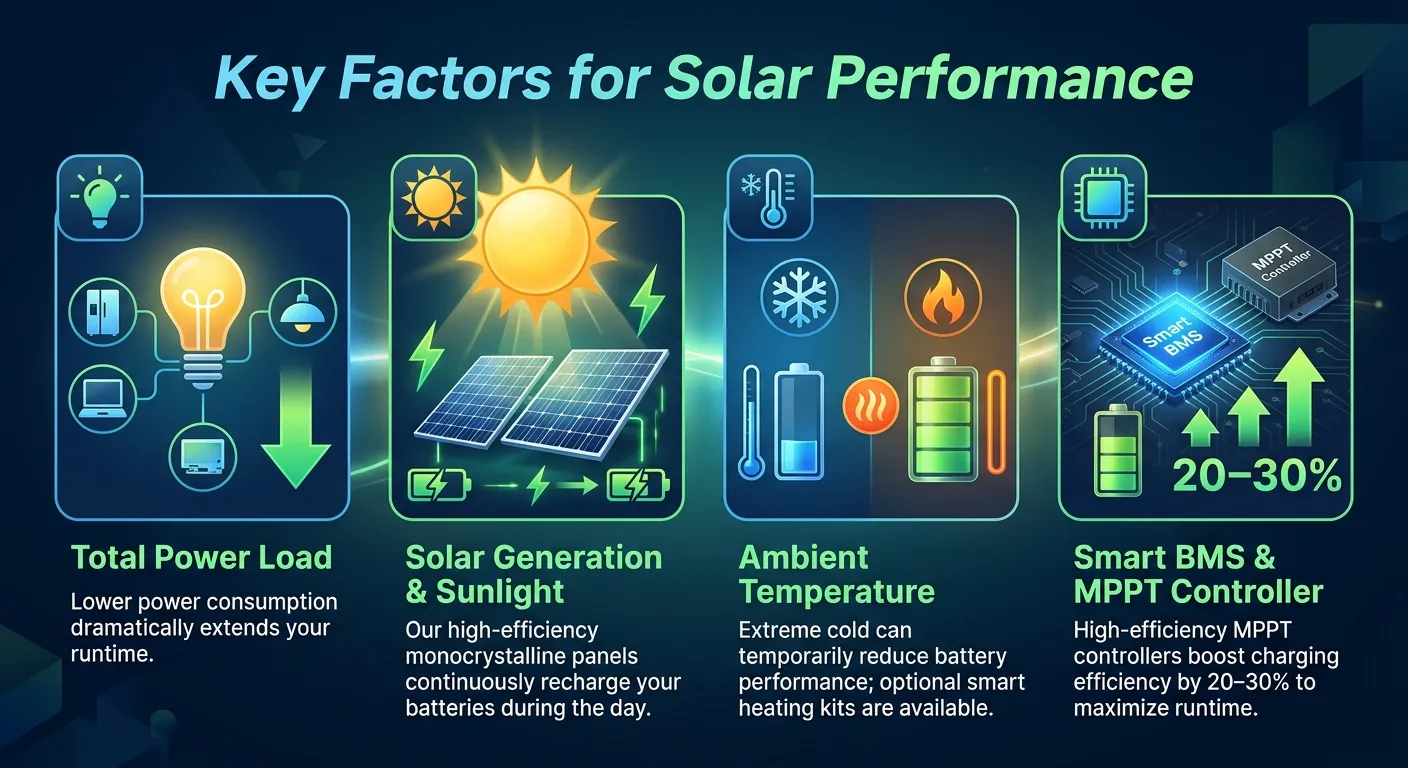

🛠️4 Key Factors Influencing Your Backup Time

Total Power Load: Lower power consumption dramatically extends your runtime.
Solar Generation & Sunlight: Our high-efficiency monocrystalline panels continuously recharge your batteries during the day.
Ambient Temperature: Extreme cold can temporarily reduce battery performance; optional smart heating kits are available.
Smart BMS & MPPT Controller: High-efficiency MPPT controllers boost charging efficiency by 20–30% to maximize runtime.

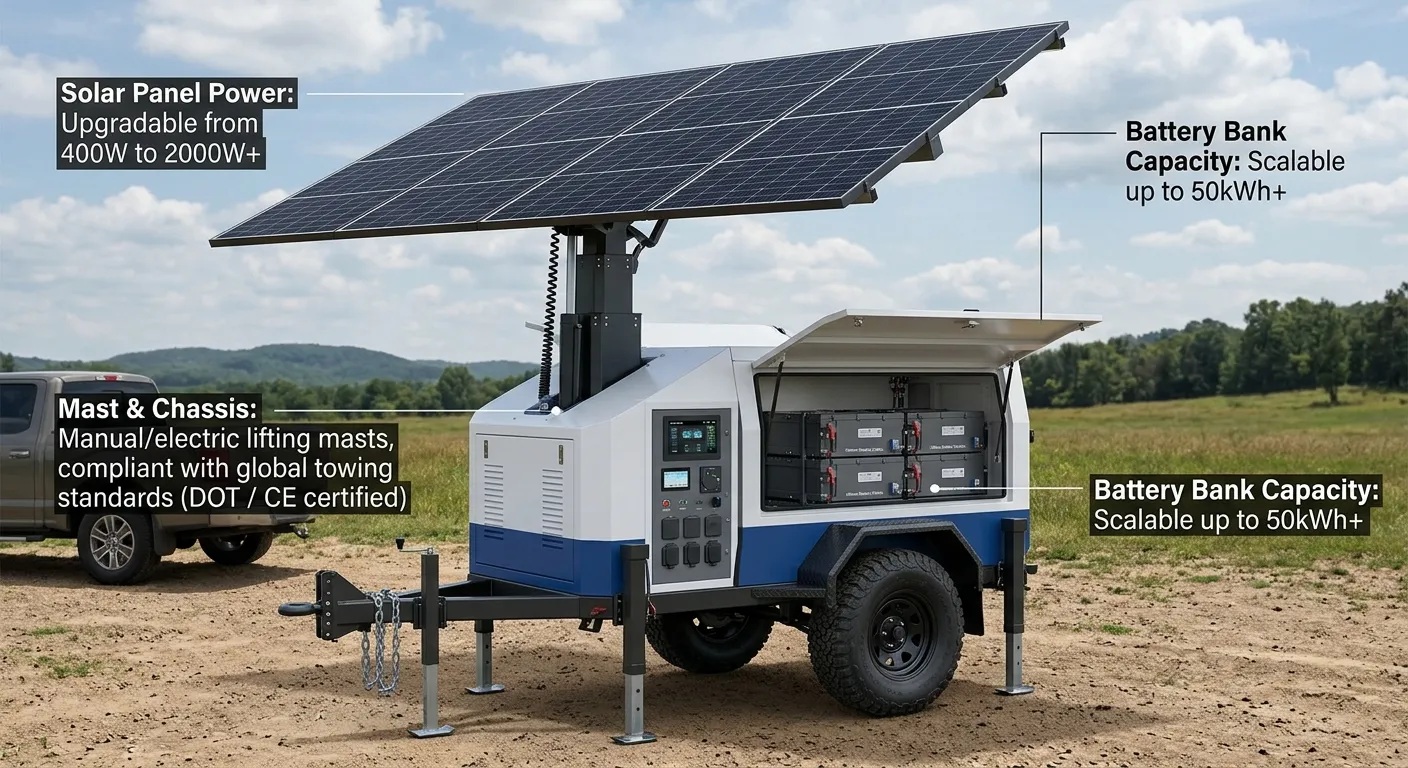

🧰Custom Configure Your Solar Mobile Trailer

Can't find an exact match? We offer full OEM/ODM customization:
Solar Panel Power: Upgradable from 400W to 2000W+
Battery Bank Capacity: Scalable up to 50kWh+
Mast & Chassis: Manual/electric lifting masts, compliant with global towing standards (DOT / CE certified).

Get Your Custom Runtime Solution & Free Quote Now!
Our engineering team will provide a professional configuration assessment within 24 hours.
APPLICATION SCENARIOS & REAL-WORLD POWER CASE STUDIES

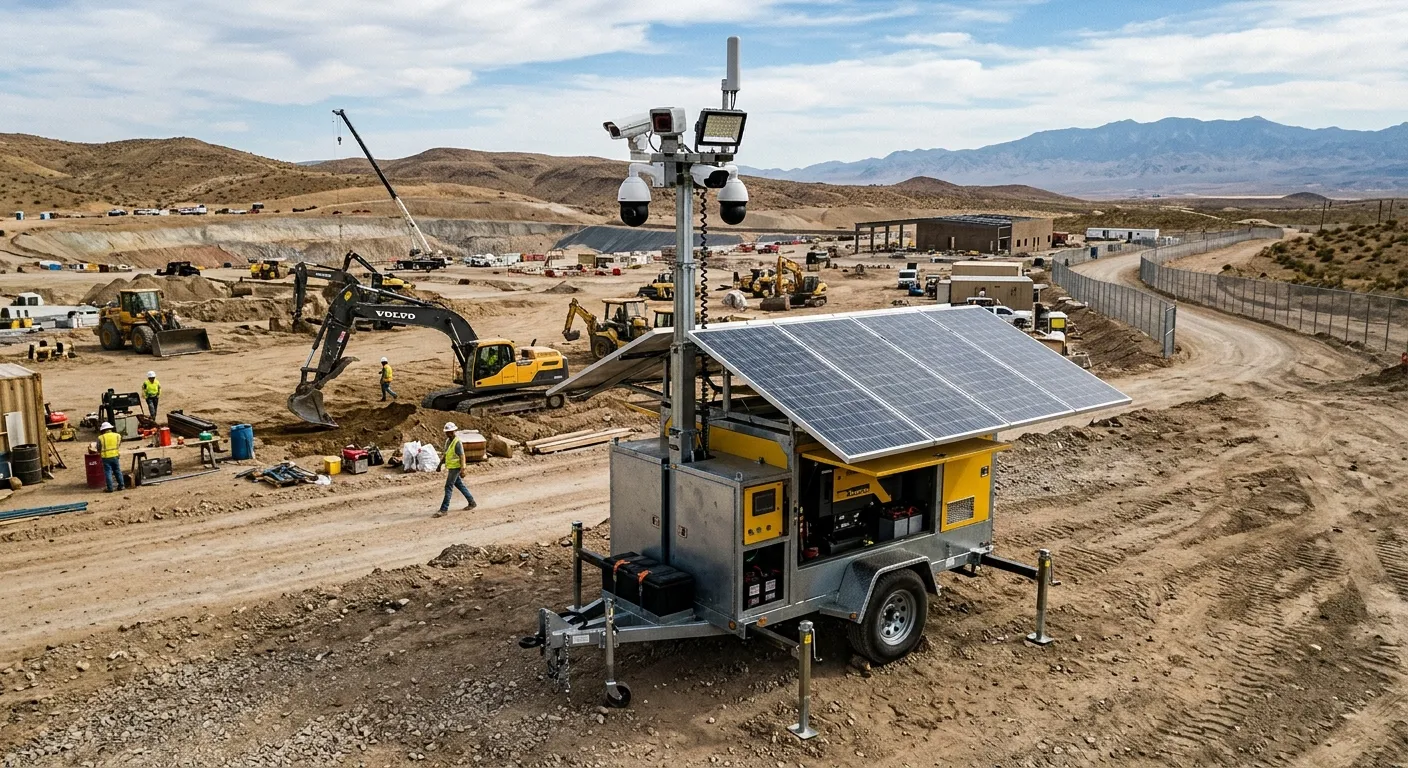

🎥Remote Security & Jobsite Surveillance
Applications: 4G/5G PTZ Cameras, Thermal Imaging Cameras, AI Face Recognition Radar, 4G/5G Industrial Routers.
Average Load: 60W – 120W
Recommended Setup: ST-400 LFP (25.6V 200Ah / 5.12 kWh) + 2 × 430W Solar Panels
Backup Performance: Continuous battery power for ~42–85 hours (supports 3.5+ days without sunlight); achieves 24/7 continuous autonomous operation with normal daily sunlight.
Key Advantage: Zero noise, zero fuel consumption, and eliminates manual anti-theft patrols. Ideal for remote mining sites and construction jobsites.

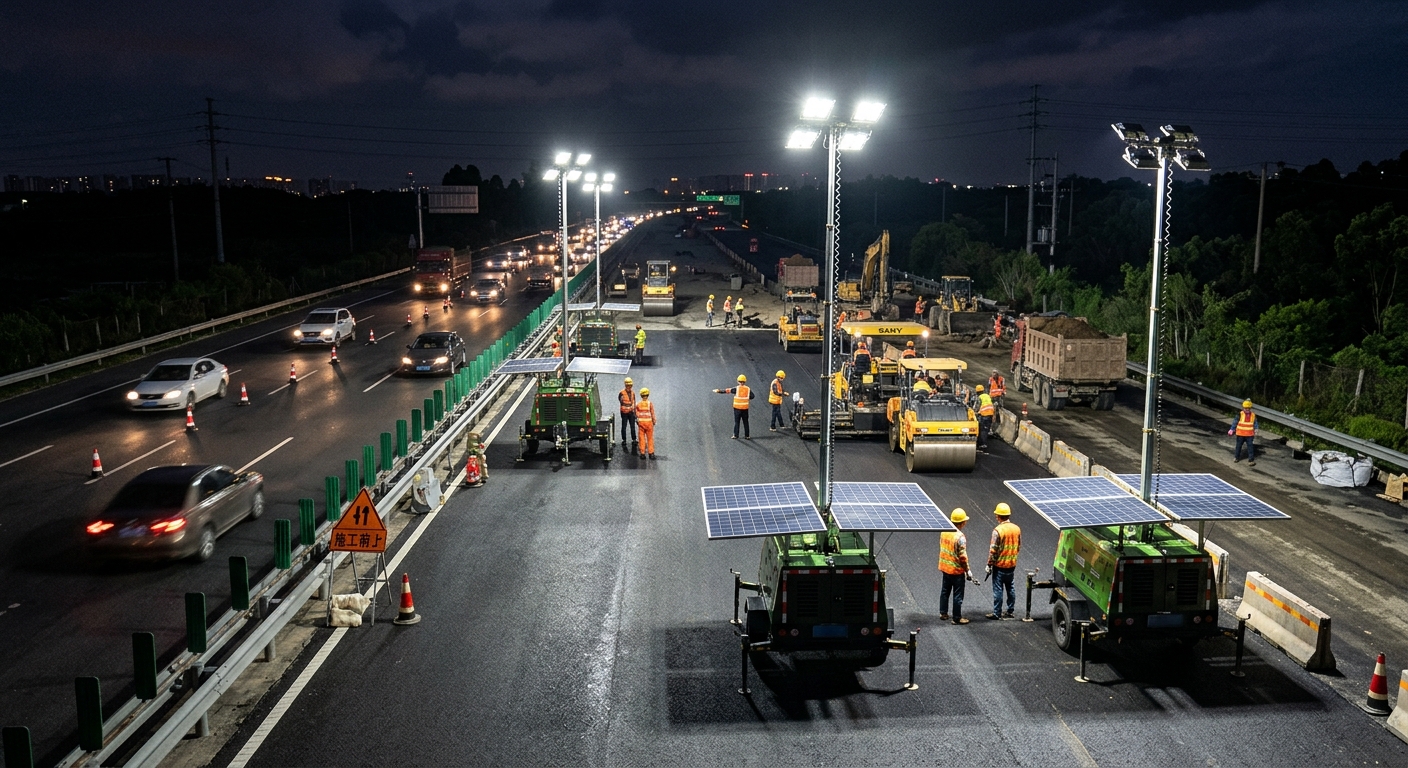

💡Highway Construction & Night Lighting
Applications: 4 × 100W High-Brightness LED Floodlights (with auto light sensor and timer switch functions).
Average Load: 200W – 400W (operating 10–12 hours per night)
Recommended Setup: ST-800 LFP (25.6V 400Ah / 10.24 kWh) + 3 × 430W Solar Panels
Backup Performance: Pure battery power provides ~25–50 hours of night lighting (easily handles 3–4 consecutive cloudy/rainy nights); fully recharges in 4–5 hours of daytime sunlight.
Key Advantage: Replaces noisy diesel generators and complies with strict European and American environmental noise regulations for nighttime urban construction.

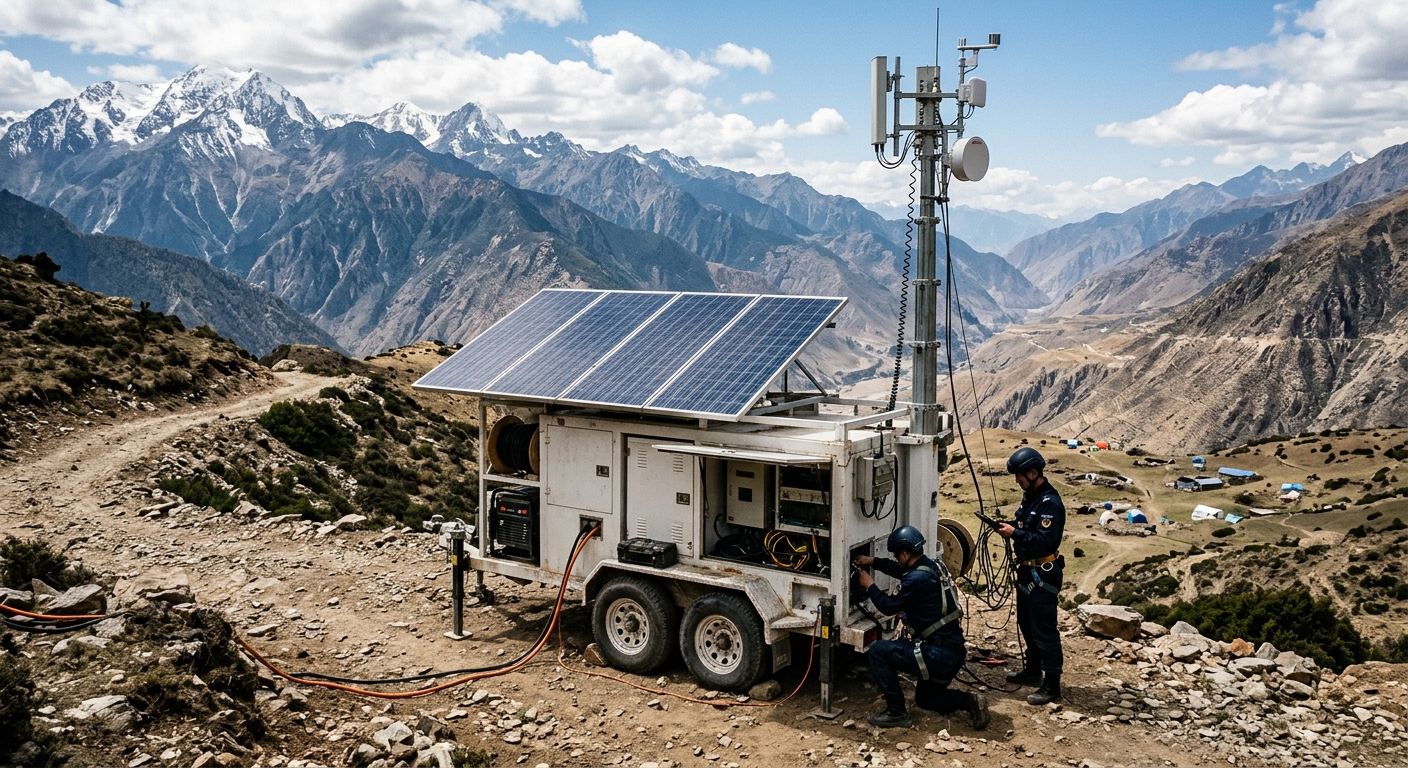

📡Emergency Telecom & Off-Grid Base Stations
Applications: Small Cell Base Stations, Satellite Communication Terminals, Wi-Fi Hotspot Coverage.
Average Load: 150W – 300W
Recommended Setup: ST-1000 Pro (51.2V 300Ah / 15.36 kWh) + 4 × 430W Solar Panels
Backup Performance: Pure battery power supports ~46–92 hours (ensures 4 days of uninterrupted connectivity in extreme weather); direct 48V DC power supply to telecom equipment minimizes inverter loss.
Key Advantage: Pure sine wave output, equipped with 4G smart BMS for remote monitoring of battery status and early low-power alerts.

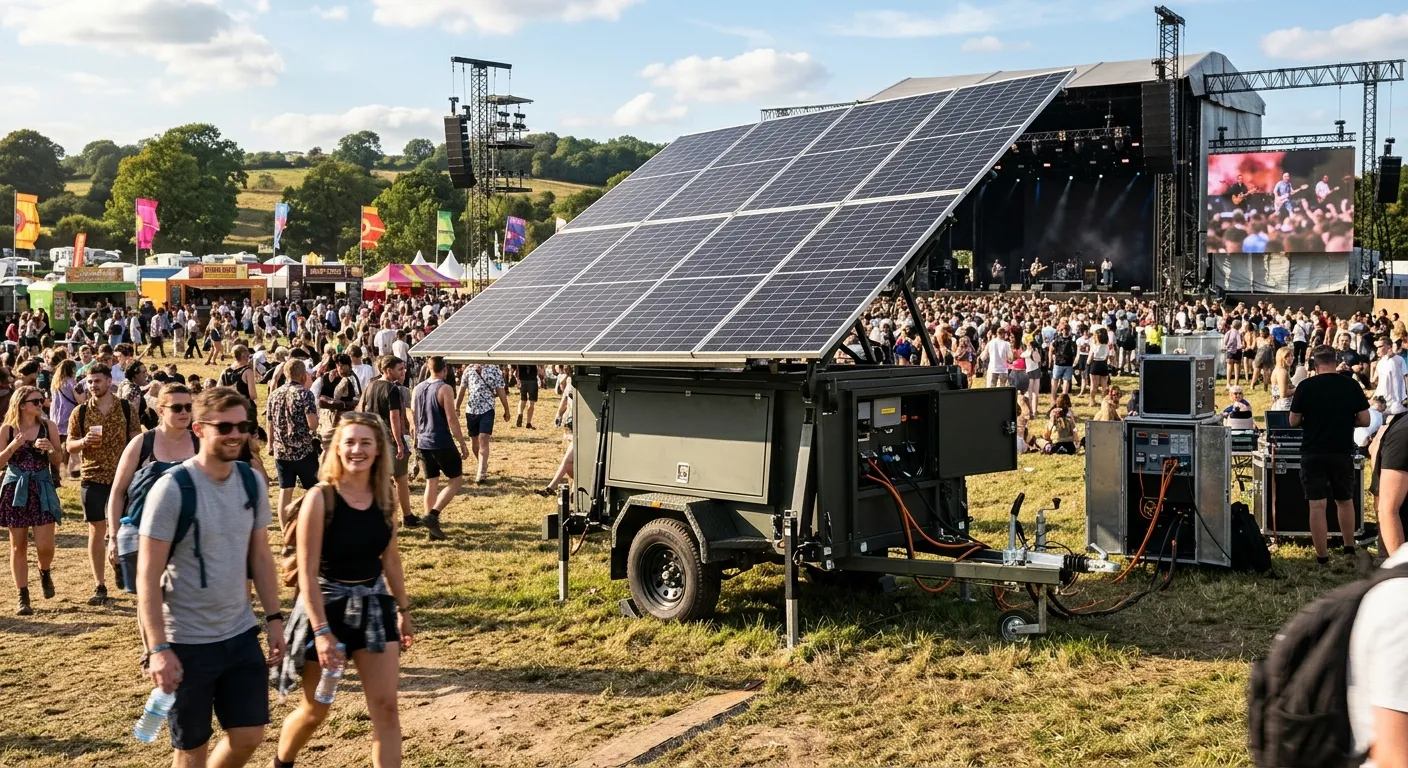

🎪Outdoor Events, Sports & Festivals
Applications: On-site Command Centers, Digital Signage, Temporary Ticketing Systems, POS Terminals, and Emergency Lighting.
Average Load: 100W – 250W
Recommended Setup: ST-200 LFP or ST-400 LFP (Lightweight trailer design; easy single-person hitching, deployment, and removal)
Backup Performance: Effortlessly supports round-the-clock power needs for 2–3 day events.
Key Advantage: Rapid deployment (plug-and-play in 10 minutes) and enhances the eco-friendly, low-carbon image of the event.

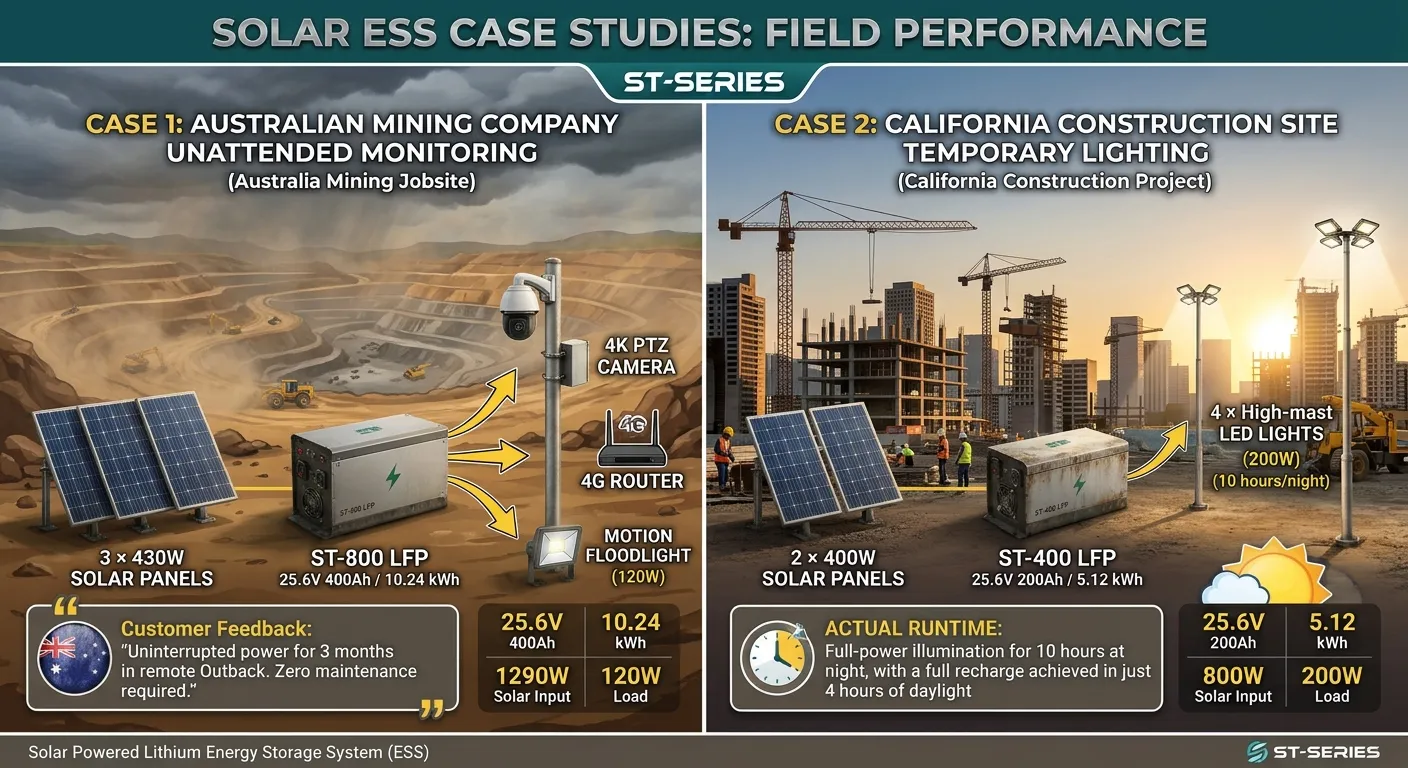

🏕️Real-World Field Case Studies

Case 1: Australian Mining Company Unattended Monitoring (Australia Mining Jobsite)
Config: ST-800 LFP (25.6V 400Ah / 10.24 kWh) + 3 × 430W Solar Panels
Load: 120W (4K PTZ Camera + 4G Router + Motion Floodlight)
Actual Runtime: Over 72 hours of continuous operation during rainy and overcast days without interruption; 100% energy self-sufficiency on sunny days.
Customer Feedback: "Uninterrupted power for 3 months in remote Outback. Zero maintenance required."

Case 2: California Construction Site Temporary Lighting (California Construction Project)
Config: ST-400 LFP (25.6V 200Ah / 5.12 kWh) + 2 × 400W Solar Panels
Load: 200W (4 × High-mast LED Lights, 10 hours/night)
Actual Runtime: Full-power illumination for 10 hours at night, with a full recharge achieved in just 4 hours of daylight.
🏢 Direct Manufacturer: Building World-Class Solar Mobile Trailers

🏭 Scale & Capacity: 20,000+ m² modern facility with automated laser cutting & robotic welding; 3,000+ annual output with 15-day fast lead time for standard models.
🛡️ Global Compliance: DOT (US), CE (EU), & ADR (AU) chassis compliance; UN38.3, MSDS, IEC62619, & CE certified batteries; IP65/IP66 protection with 100 km/h wind resistance.
🛠️ Full OEM/ODM Customization: Custom RAL colors & laser-cut logos; 4m–9m manual/electric/hydraulic masts; custom PV-to-battery ratios with diesel generator/AC shore power integration.
🌍 Proven Global Reach: 10,000+ units deployed across 60+ countries, backed by a 3–5 year warranty and 24/7 technical support.

Frequently Asked Questions

Q1: How do I calculate the backup time for my specific equipment?

Answer: Backup Time (Hours) = [Battery Voltage (V) × Capacity (Ah) × DOD (0.9 for Lithium)] ÷ Total Load Power (Watts). Contact our team to get a quick calculation report!

Q2: What happens during prolonged cloudy or rainy weather?

Answer: Our system is oversized for multi-day autonomy (typically 3–7 days). Additionally, all trailers feature an optional AC grid / Diesel generator hybrid input port for fast manual charging.

Q3: Can the battery system operate in extreme hot or cold temperatures?

Answer: Yes. Our LiFePO4 batteries feature a Smart BMS with auto-heating modules for temperatures down to -20°C (-4°F) and cooling ventilation for heat up to 60°C (140°F).
