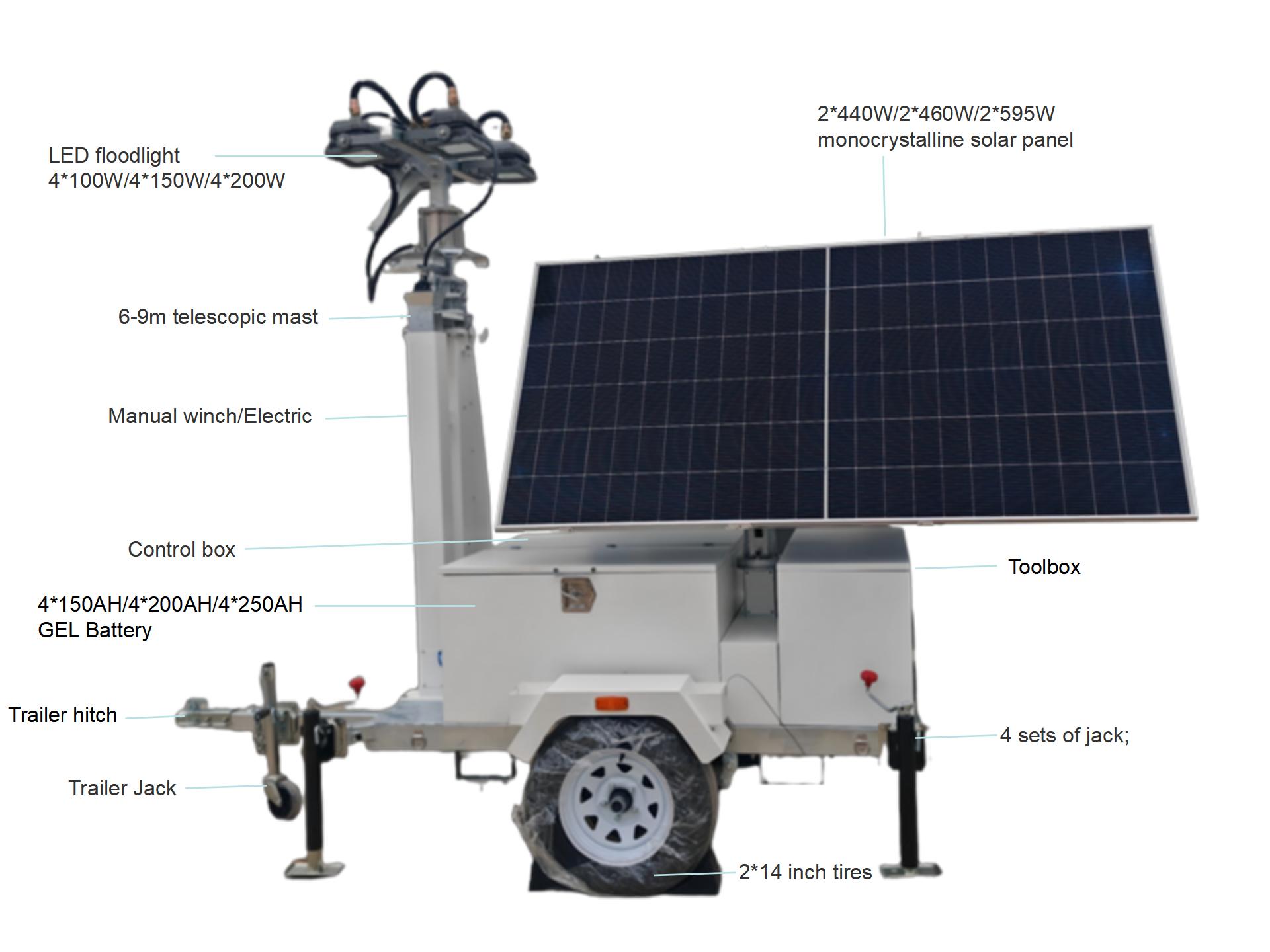

Core Components
1. Solar Panel Array: These photovoltaic panels are mounted on trailers or surrounding bases to capture sunlight and convert it into electrical energy. They are typically adjustable to optimize their angle toward the sun.

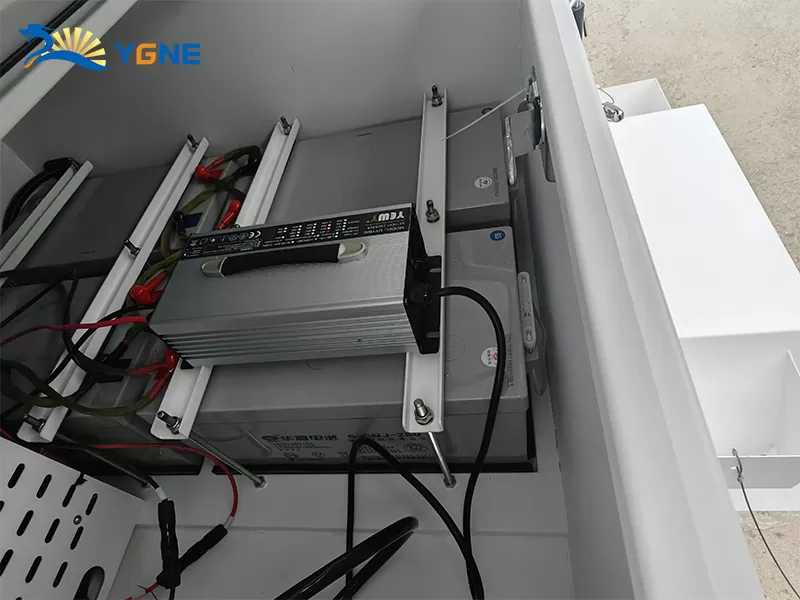

2. Battery Bank: This is the heart of the energy storage system. Deep-cycle lithium-ion (Li-ion) or gel batteries are commonly used to store solar energy generated during the day for nighttime use. Lithium-ion batteries are favored for their longer lifespan, lighter weight, and higher efficiency.

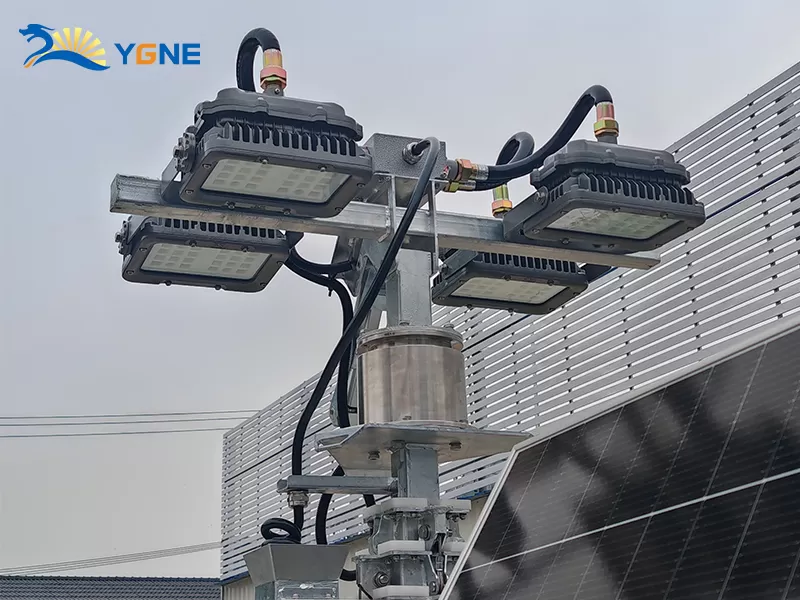

3. LED Lighting Head: High-lumen, low-energy light-emitting diode (LED) fixtures are mounted atop the mast. LEDs are crucial as they provide bright illumination while consuming minimal power, making solar operation feasible. They are often dimmable and configurable for different modes.

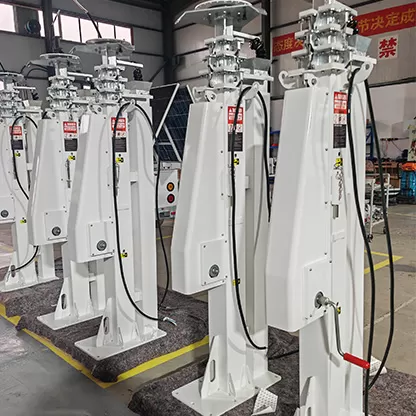

4. Telescopic Mast: A manual, electric, or hydraulic mast that typically extends to heights between 6 and 12 meters (20 to 40 feet), elevating the lights to cover larger areas and reduce shadows.
5. Charge Controller: An intelligent device that manages the current flow from the solar panels to the batteries. It prevents overcharging and deep discharging, thereby protecting the battery bank and extending its lifespan.

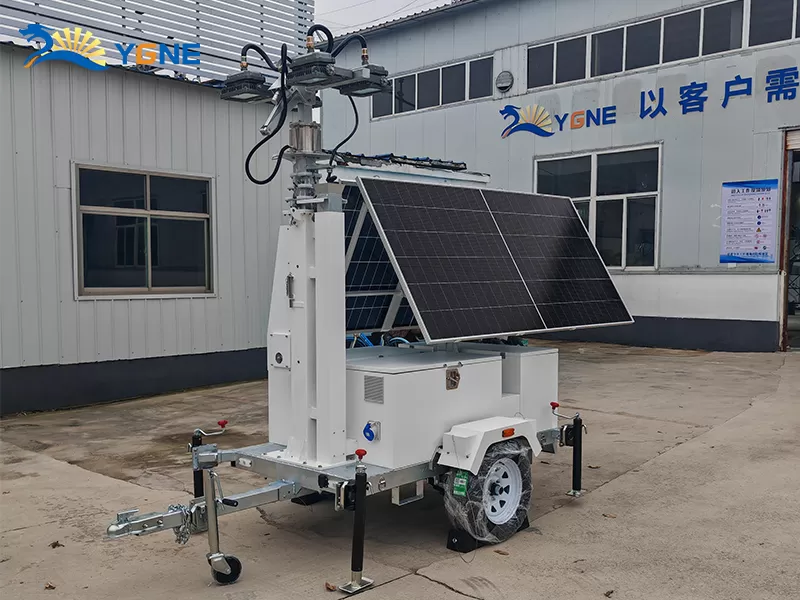

6. Trailer and Chassis: A mobile base, usually equipped with a tow hitch and wheels for easy transportation between sites. Some are also available as skid-mounted units for placement on trucks or fixed locations.
Operation follows a simple automated cycle:
1. Daytime (Charging): Solar panels collect energy from the sun and convert it into direct current (DC). The charge controller regulates this power and uses it to charge the battery bank.

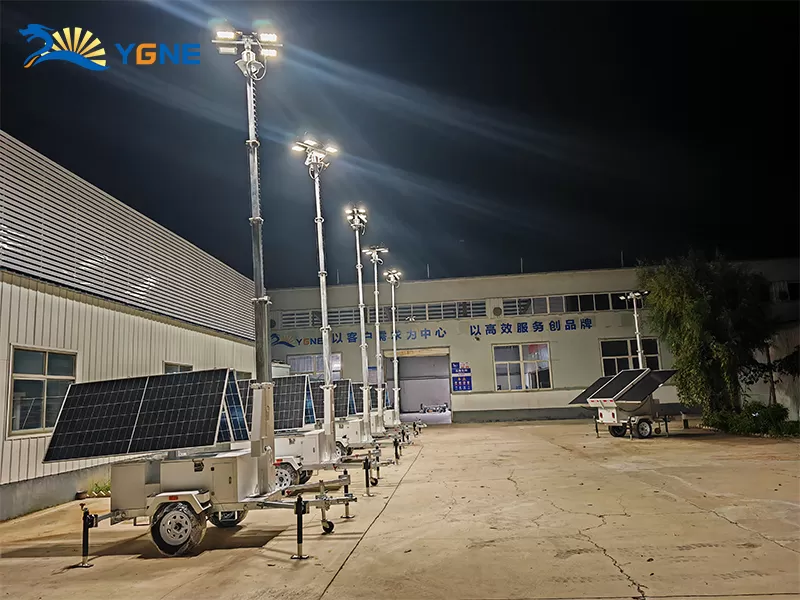

2. Dusk to Dawn (Discharging): A built-in photocell (light sensor) automatically detects when ambient light falls below a certain level. The system then draws power from the battery bank to illuminate the LED lights. The lights remain on for preset hours or until dawn, when the photocell turns them off and the cycle begins anew.
Key Features and Advantages
- Zero Fuel Costs and Emissions: The most notable advantage. They eliminate fuel expenses and produce no greenhouse gases or air pollutants.
- Silent Operation: Ideal for noise-sensitive environments such as residential areas, hospitals, and event venues. No loud generator hum.
- Low Maintenance: With no engine, oil, filters, or spark plugs, maintenance is minimal, primarily involving keeping solar panels clean and checking battery health.
- Rapid Deployment and Mobility: Can be towed to a location, quickly set up, and turned on without needing a grid connection.
- Remote Operation and Control: Modern units often feature GSM (cellular) remote controls, allowing users to turn lights on/off, dim them, or check battery status via a smartphone app.
- Sustainability: They use 100% renewable energy, enhancing a company’s green credentials.
Limitations and Considerations
- Upfront Cost: The initial investment is higher than traditional diesel-powered light towers due to the cost of solar panels and batteries.
- Sunlight Dependency: Performance is directly tied to solar irradiance. Prolonged cloudy or rainy conditions reduce charge and may limit runtime. Many units offer backup charging options (e.g., grid connection or a small built-in backup generator) for such scenarios.
- Runtime: The duration lights can operate on a full charge depends on battery capacity, the number and wattage of LEDs used, and the amount of sunlight received.
Primary Applications
- Construction Sites: Provide safe, illuminated work areas during early mornings, late evenings, or night shifts without the noise and fumes of generators.
- Event Security and Venues: Lighting for parking lots, perimeters, and outdoor events where quiet and clean operation is essential.
- Public Safety and Emergency Response: Illumination for disaster relief zones, accident sites, and temporary security checkpoints.
- Parking Lots and Perimeter Security: Provide security lighting for industrial yards, remote facilities, and temporary compounds.
- Mining and Quarrying: Offer lighting at remote extraction sites where fuel delivery is costly and logistics are challenging.
- Agriculture and Farming: Used for nighttime operations or securing remote farm storage areas.
